CAP- Type C1

Description

Type C caps are characterised by being made of single piece. The seal is a plastic flange along the inner rim of the bottle. These are typically found on soda drink bottles. The may be partially interrupted.

Images

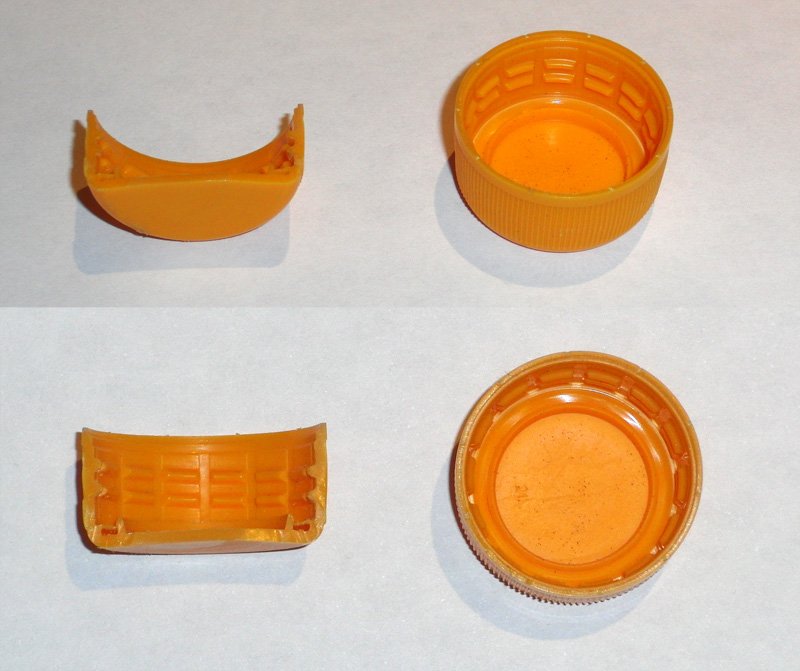

Top and inside view

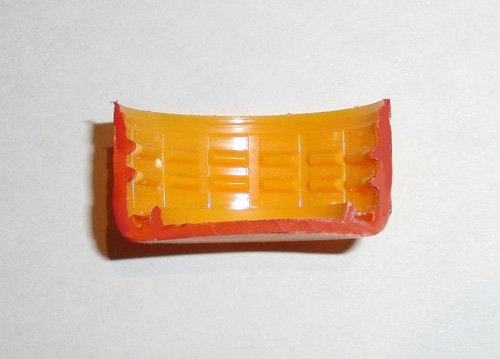

Cross section

Data

Parameter Value Units

Notes

Dimensions
diameter (OD) 30.5 mm
height 15.2 mm
circumference 95.8 mm
thread     partially interrupted
Burst Pressure
pressure ? psi To be determined. Holds at least 200psi +
Weight
weight 2.5 g
Miscellaneous
material Polypropylene


Related Information

  • Cap fits well inside T8 FTC.
