PC_0600_001 - 600mL Bottle

Description

A 600mL bottle with curved sides. A classic 'Coke' shape. It has a concave neck.

Images

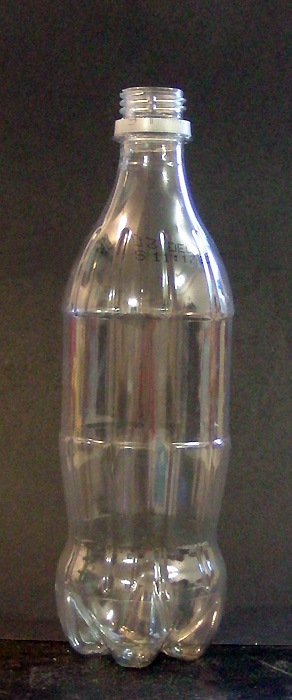

Standard 600mL Coke bottle

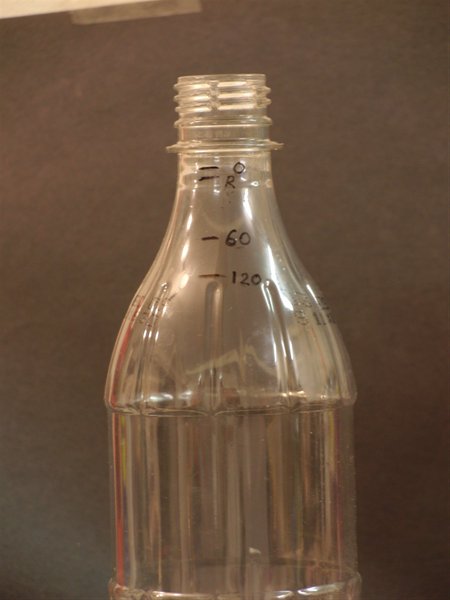

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 215* psi * Bottle did not burst, but limit of pressure source was reached. Bottle severely distorted and close to failure. 091114_001
Capacity
volume 600 mL Labelled 090906_001
  638 mL Actual - unpressurised 090906_001
  +15 mL @ 60 psi 090920_001
  +31 mL @ 120 psi 090920_001
  0 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 26 grams No label, cap or cap ring 090906_001
Dimensions
height 234 mm Unpressurised 090906_001
  +0.5 mm @ 60 psi 090920_001
  +2.5 mm @ 120 psi 090920_001
diameter (OD) 70 mm Unpressurised (middle) 090906_001
  70.3 mm @ 60 psi (middle) 090920_001
  71 mm @ 120 psi (middle) 090920_001

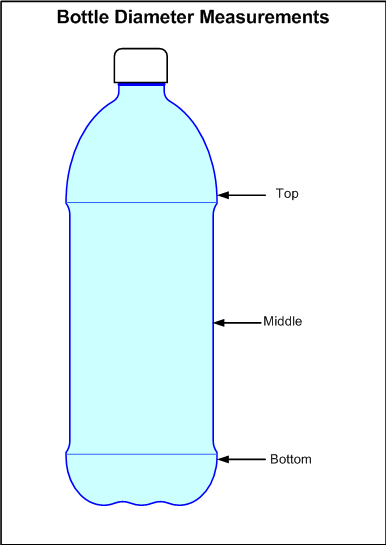

circumference 225 mm Unpressurised (top) 090906_001
  220 mm Unpressurised (middle) 090906_001
  227 mm Unpressurised (bottom) 090906_001
  +1 mm @ 60 psi (middle) 090920_001
  +2.5 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
Manufacturer Coca Cola
