PC_2000_001 - 2L bottle

Description

A 2L bottle with straight sides and with a ridge in the middle. Suitable for splicing and nosecones.

Images

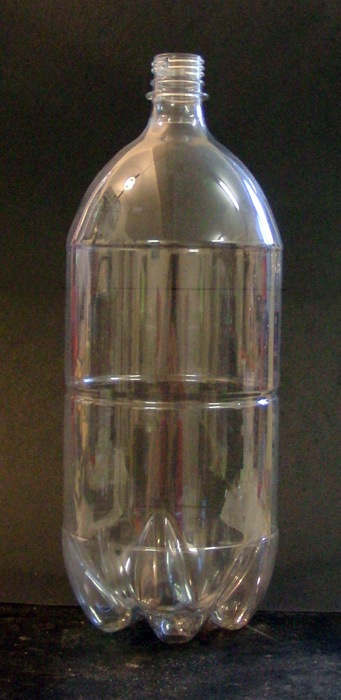

A standard 2L bottle.

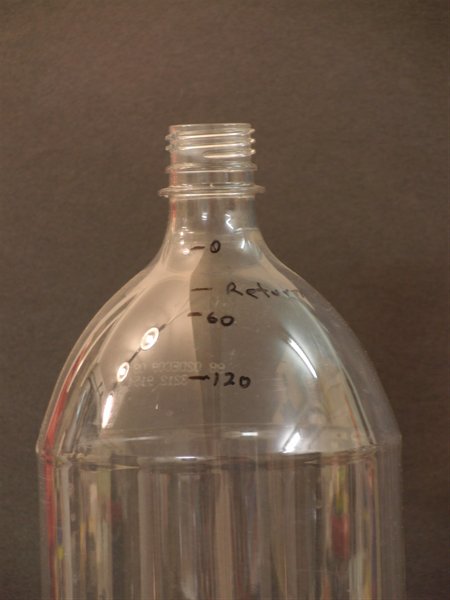

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 167 psi Averaged value from experiments
(165psi and 170psi)
070715_001
091114_001
Capacity
volume 2000 mL Labelled 090906_001
  2096 mL Actual - unpressurised 090906_001
  +48 mL @ 60 psi 090920_001
  +157 mL @ 120 psi 090920_001
  +24 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 50 grams No label, cap or cap ring 090906_001
Dimensions
height 294 mm Unpressurised 090906_001
  +2 mm @ 60 psi 090920_001
  +6 mm @ 120 psi 090920_001
diameter (OD) 110.7 mm Unpressurised (middle) 090906_001
  111.6 mm @ 60 psi (middle) 090920_001
  113.3 mm @ 120 psi (middle) 090920_001
circumference 352 mm Unpressurised (top) 090906_001
  348 mm Unpressurised (middle) 090906_001
  352 mm Unpressurised (bottom) 090906_001
  +2.5 mm @ 60 psi (middle) 090920_001
  +8 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
Manufacturer

Related Information
