PC_2000_003 - 2L bottle

Description

A 2L bottle with curved sides - the standard 'Coke' bottle. Suitable for single bottle rockets.

Images

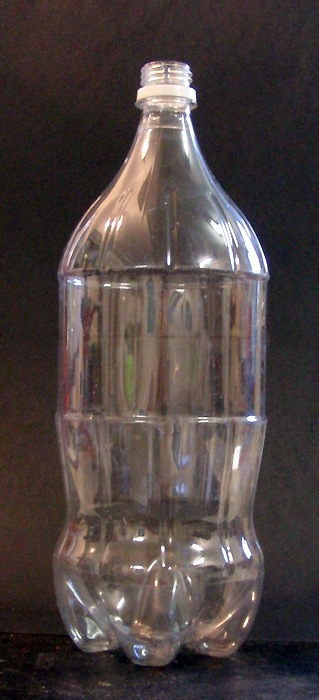

Standard 2L 'Coke' bottle.

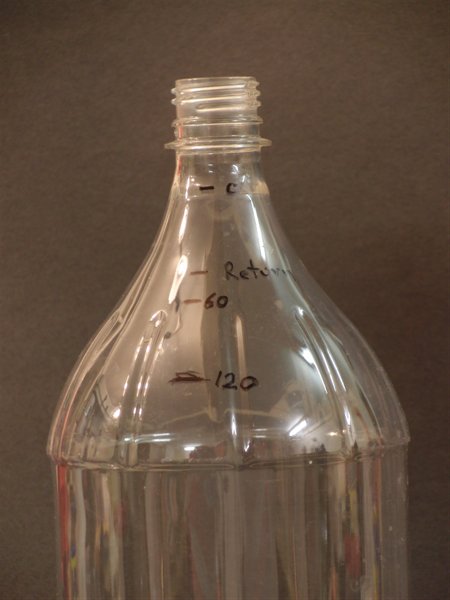

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 161 psi Averaged value from experiments:
(155psi and 168psi)
061022_001
091114_001
Capacity
volume 2000 mL Labelled 090906_001
  2092 mL Actual - unpressurised 090906_001
  +59 mL @ 60 psi 090920_001
  +192 mL @ 120 psi 090920_001
  +34 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 54 grams No label, cap or cap ring 090906_001
Dimensions
height 311 mm Unpressurised 090906_001
  +2 mm @ 60 psi 090920_001
  +7 mm @ 120 psi 090920_001
diameter (OD) 110.5 mm Unpressurised (middle) 090906_001
  111.2 mm @ 60 psi (middle) 090920_001
  113 mm @ 120 psi (middle) 090920_001
circumference 351 mm Unpressurised (top) 090906_001
  347 mm Unpressurised (middle) 090906_001
  355 mm Unpressurised (bottom) 090906_001
  +2.5 mm @ 60 psi (middle) 090920_001
  +8 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
Manufacturer
