PC_2250_001 - 2.25L bottle

Description

A 2.25L bottle with straight sides. Suitable for splicing and nosecones.

Images

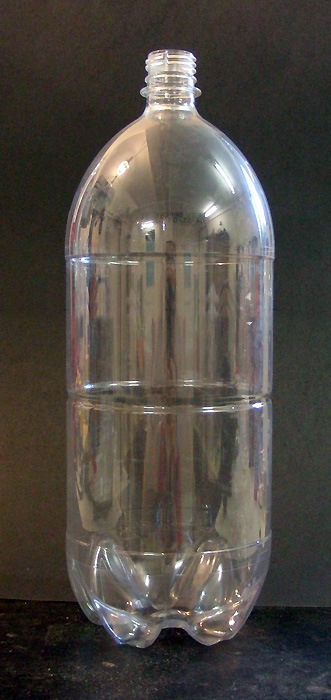

A 2.25L bottle

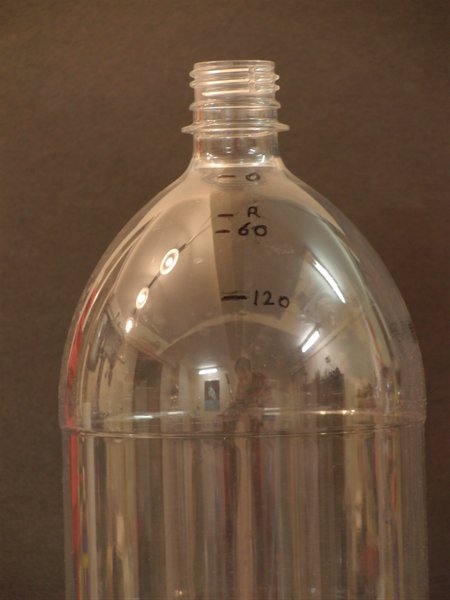

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 162 psi Averaged value from experiment:  091114_001
Capacity
volume 2250 mL Labelled 090906_001
  2362 mL Actual - unpressurised 090906_001
  +55 mL @ 60 psi 090920_001
  +172 mL @ 120 psi 090920_001
  +29 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 55 grams No label, cap or cap ring 090906_001
Dimensions
height 312 mm Unpressurised 090906_001
  +2 mm @ 60 psi 090920_001
  +8.5 mm @ 120 psi 090920_001
diameter (OD) 111.7 mm Unpressurised (middle) 090906_001
  112.5 mm @ 60 psi (middle) 090920_001
  114.4 mm @ 120 psi (middle) 090920_001
circumference 355 mm Unpressurised (top) 090906_001
  351 mm Unpressurised (middle) 090906_001
  355 mm Unpressurised (bottom) 090906_001
  +2.5 mm @ 60 psi (middle) 090920_001
  +8.5 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
Manufacturer
