FLIGHT LOG

Each flight log entry usually represents a launch or test day, and describes the events that took place.
Click on an image to view a larger image, and click the browser's BACK button to return back to the page.



Day 169 - Windy
Date: 15th November 2015
Location:
Denzil Joyce Oval, NSW, Australia
Conditions:
 Strong wind ~25-30km/h, clear  26C, 5:30pm-7:30pm
Team Members at Event:
 GK, and PK.

Windy

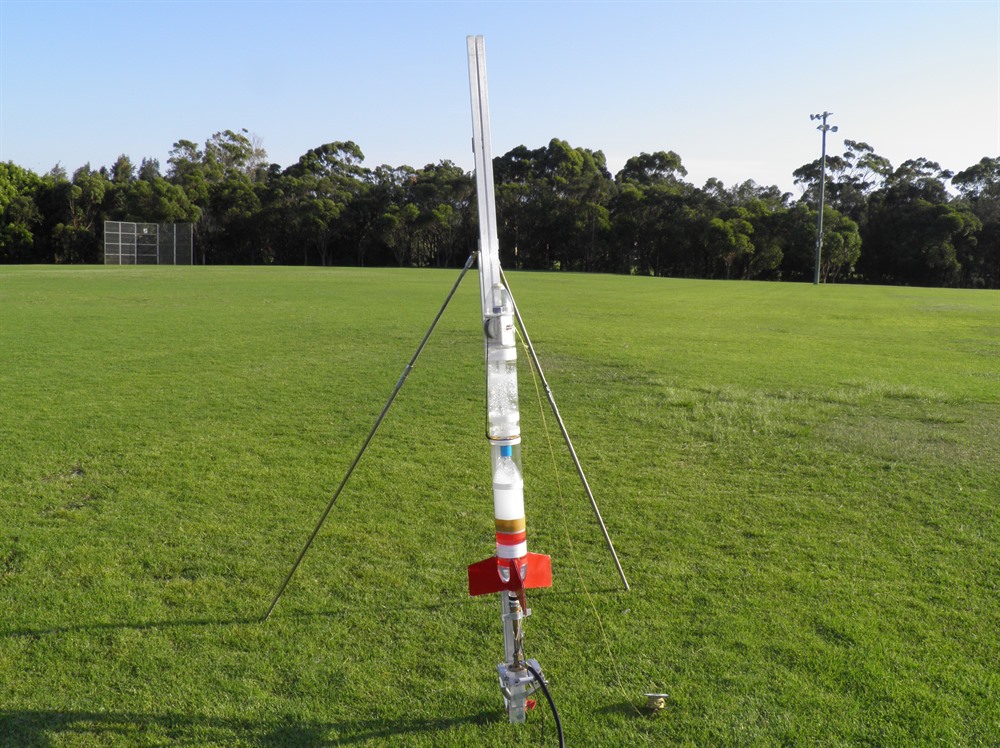

Today was a demonstration flight day for some friends visiting from out of town. As they were heading back on Friday this was the only opportunity we had to fly some rockets. We had to go to our old launch site at Denzil Joyce oval as it was close by, but the wind was really strong. Under normal circumstances we wouldn't fly in this kind of wind, so we made up the shorter rocket (Axion III) and only pressurised it to 100psi. We also pointed it into the wind, and set the delay 1 second past apogee to have it open later to reduce the amount of drift. We also didn't put any electronics on board because there was a high chance we were going to lose the rocket in the trees.

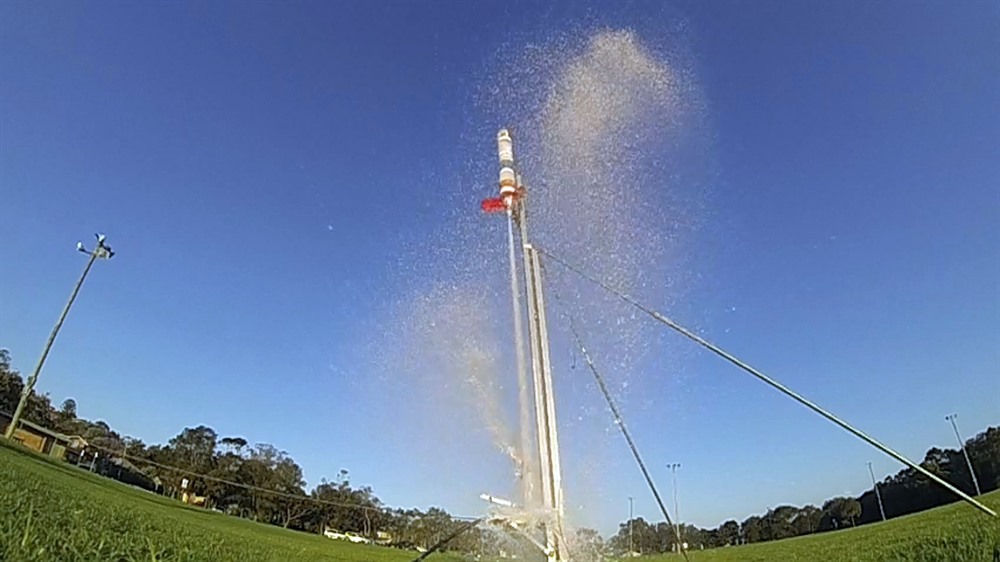

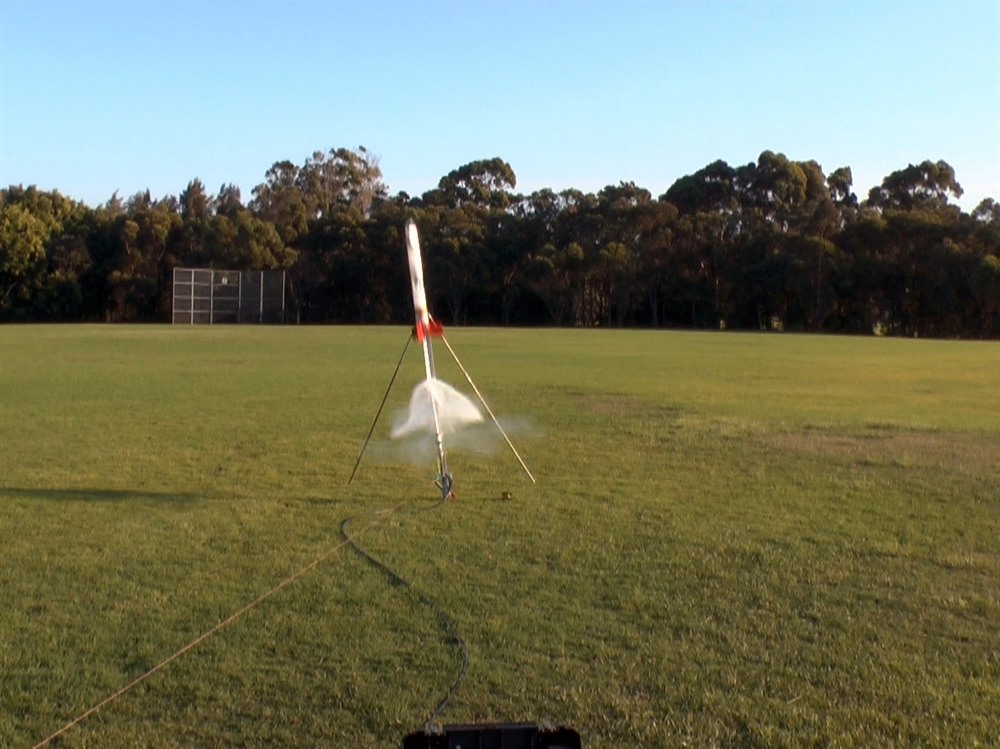

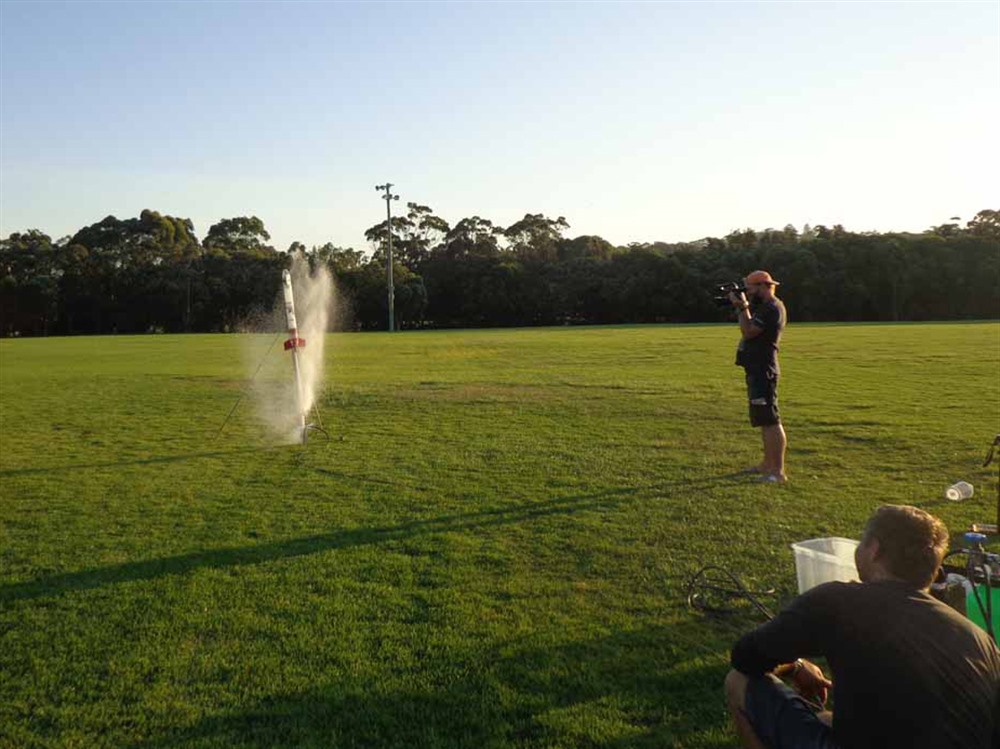

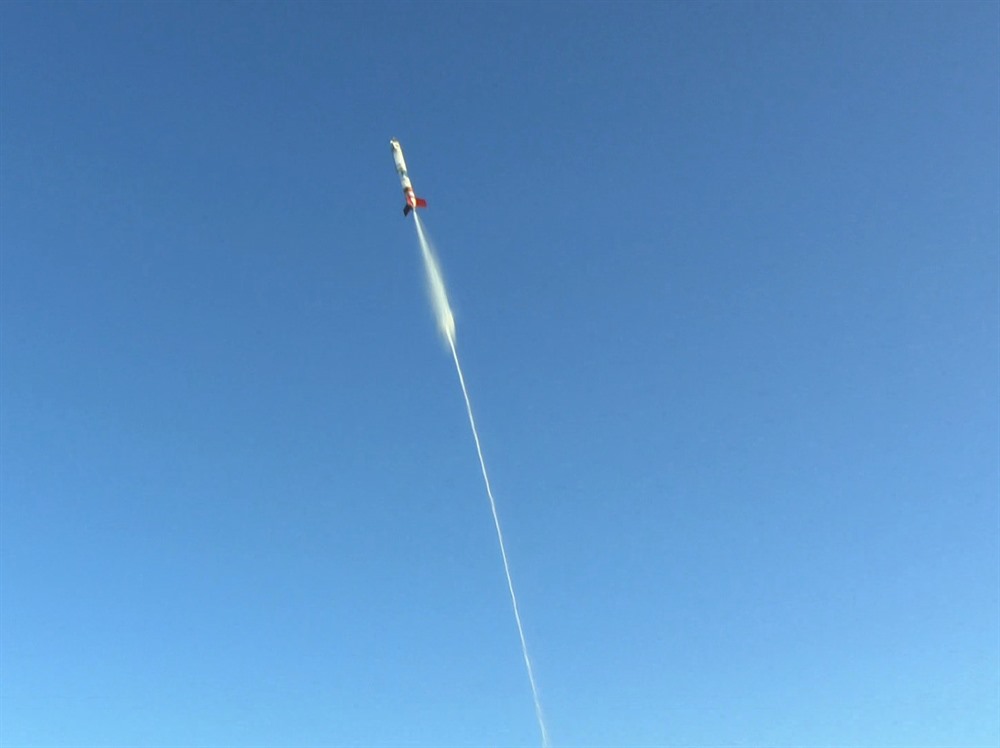

We launched the rocket five times with a 9mm nozzle and foam, and once with a 22mm nozzle. All the flights went well with 4 out of the 6 landing just before the trees near the creek at the end of the oval. On flight 4 the parachute deployed but didn't inflate until about 10 meters above the ground bringing the rocket to a safe landing. There is no video this week as there really wasn't that much interesting to see.




















Flight Details

Launch Details
1
Rocket   Axion III
Pressure   100psi
Nozzle   9mm
Water   1000mL + foam
Flight Computer   ST II - 4 seconds
Payload   None
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing long way down range.
2
Rocket   Axion III
Pressure   100psi
Nozzle   9mm
Water   1000mL + foam
Flight Computer   ST II - 4 seconds
Payload   None
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing long way down range.
3
Rocket   Axion III
Pressure   100psi
Nozzle   22mm
Water   1000mL + foam
Flight Computer   ST II - 5 seconds
Payload   None
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing long way down range.
4
Rocket   Axion III
Pressure   100psi
Nozzle   9mm
Water   1000mL + foam
Flight Computer   ST II - 5 seconds
Payload   None
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing with late parachute inflation.
5
Rocket   Axion III
Pressure   100psi
Nozzle   9mm
Water   1000mL + foam
Flight Computer   ST II - 5 seconds
Payload   None
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing long way down range.
6
Rocket   Axion III
Pressure   100psi
Nozzle   9mm
Water   1000mL + foam
Flight Computer   ST II - 5 seconds
Payload   None
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing long way down range.
