FLIGHT LOG

Each flight log entry usually represents a launch or test day, and describes the events that took place.
Click on an image to view a larger image, and click the browser's BACK button to return back to the page.



Day 168 - More Casual Flights
Date: 31st October 2015
Location:
Whalan Reserve, NSW, Australia
Conditions:
 Light breeze ~5km/h, overcast  23C,
Team Members at Event:
 GK, PK and Paul K.

Casual Flights

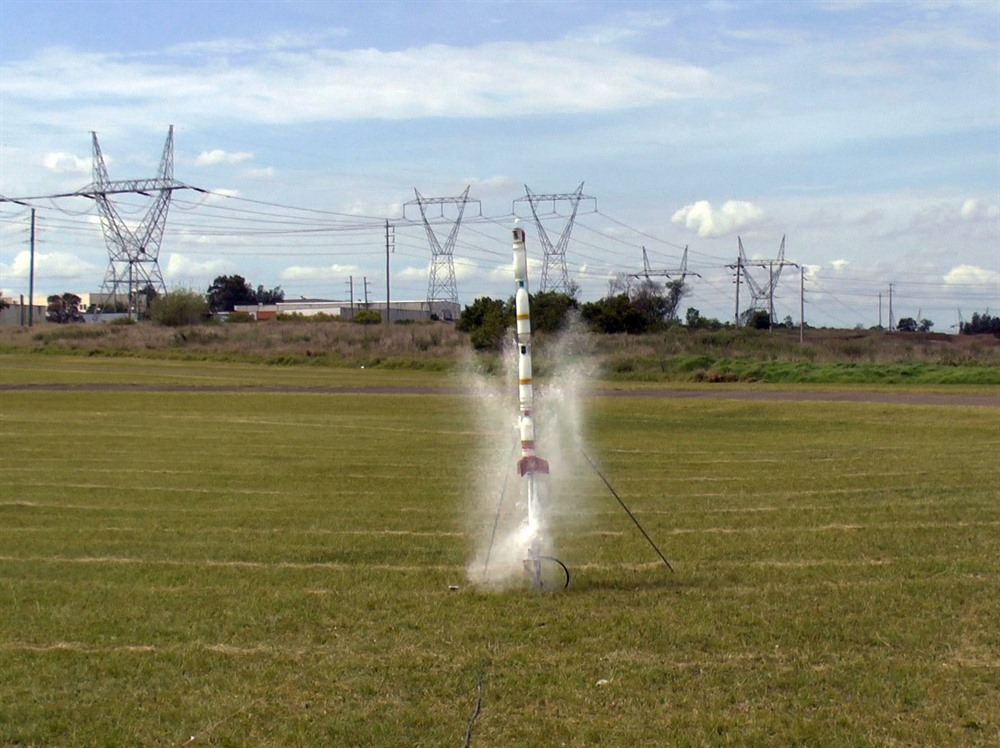

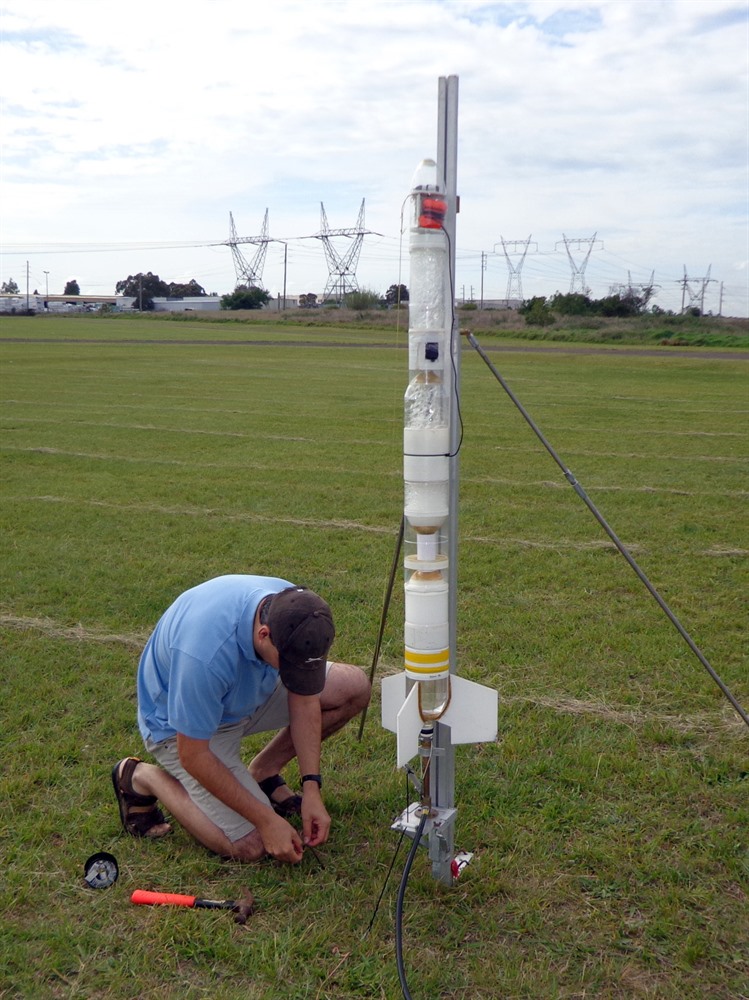

This week we again just flew rockets for the fun of it. The night before we built a rocket out of old 2L spliced pairs of bottles that probably last saw action around 3-4 years ago. For the deployment mechanism we just screwed on a 90mm deployment mechanism that we normally use on our Axion rockets.

We only pressurised the rocket to 110psi just to make sure it didn't spontaneously turn into confetti. The flight was a little anaemic with 2.1L of water, the higher drag and lower pressure all combined to give a slow take off.

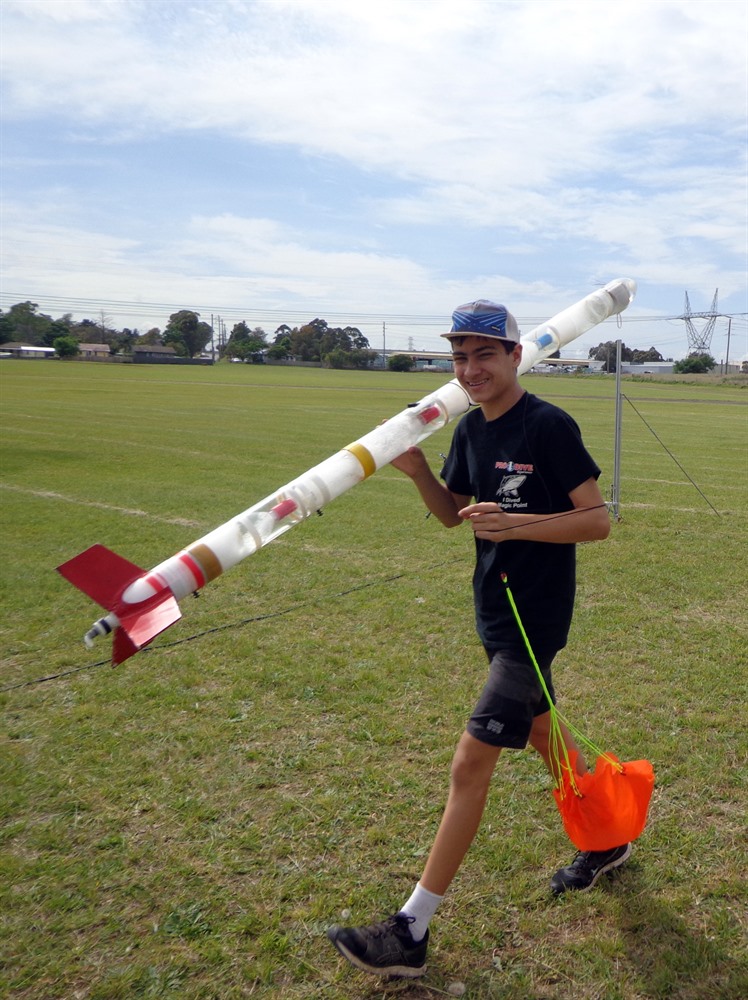

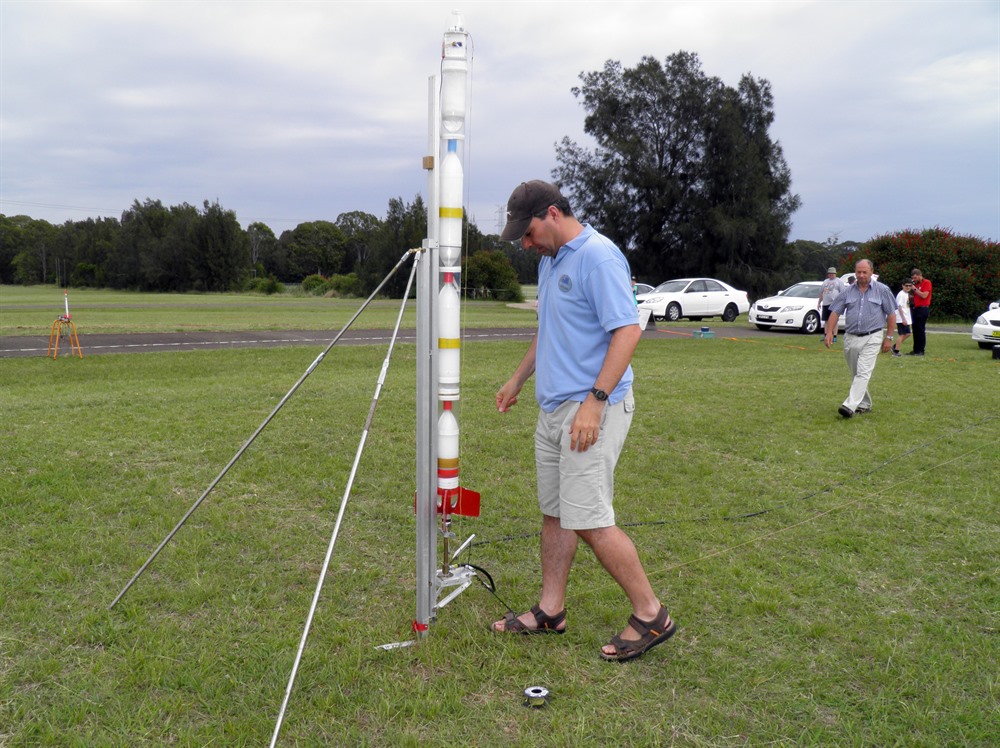

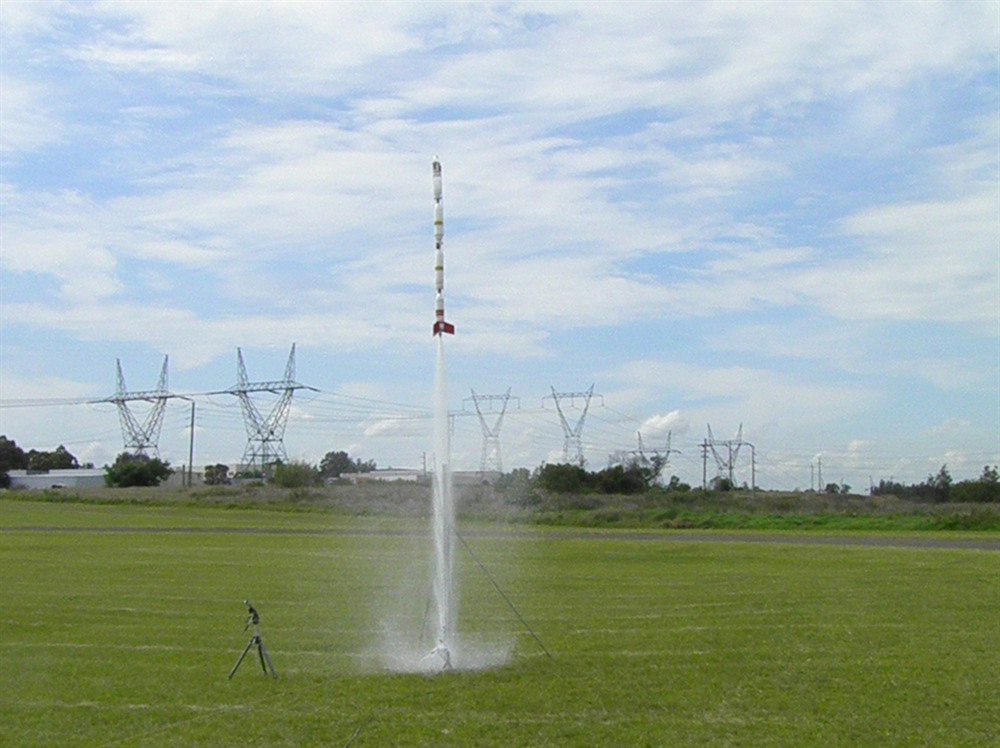

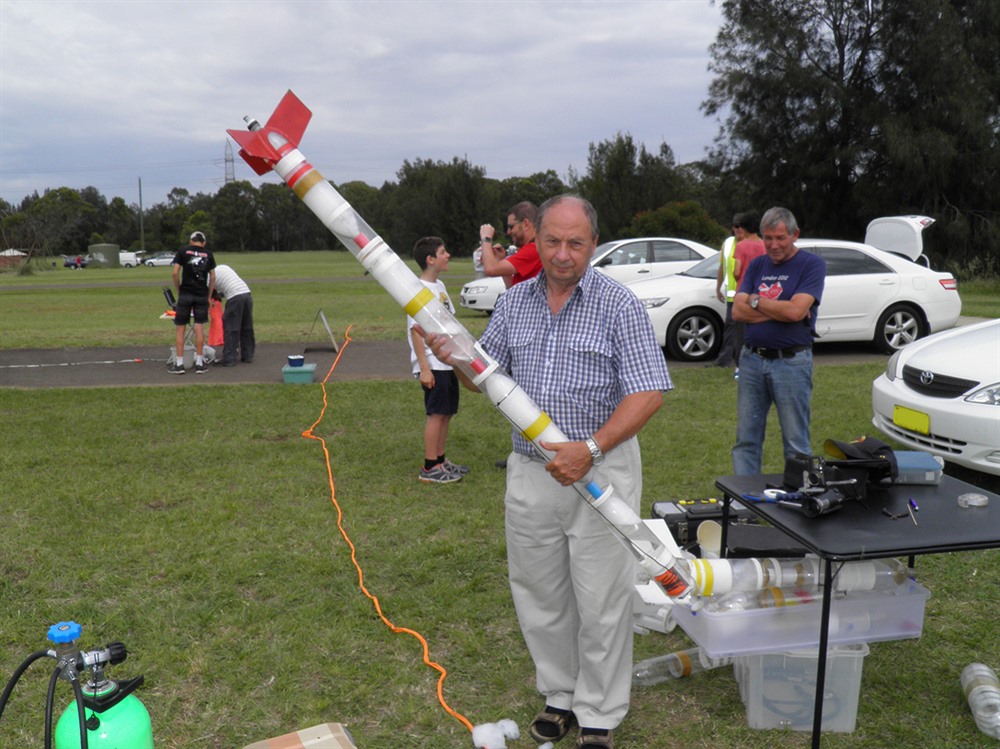

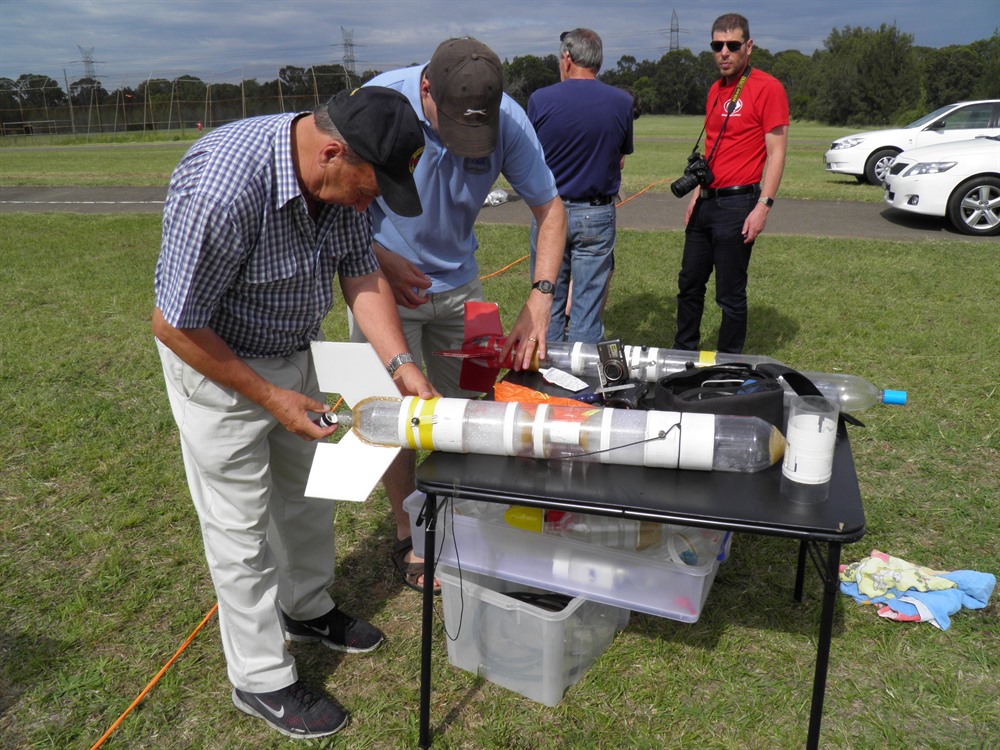

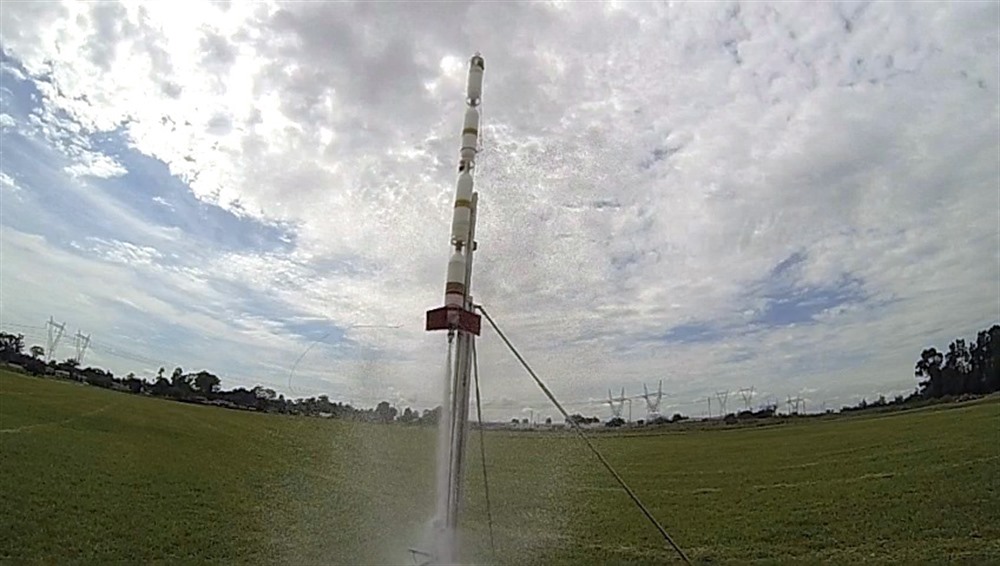

We then assembled the full length Axion rocket and flew it 3 times. The rocket flew well with the mis-aligned fins ensuring that the rocket had a decent roll that balanced out the slight bend in the rocket. What was interesting with this longer configuration was the longer thrust phase.

Paul also flew his two model rockets, the "Fireflight" on a B6-4 and his "Black Thunder" on a C6-3. Both flew great and recovered safely.

All in all it was a good day for flying.






















Flight Details

Launch Details
1
Rocket   Polaron X
Pressure   110psi
Nozzle   9mm
Water   2100mL + foam
Flight Computer   ST II - 5 seconds
Payload   HD cam #16
Altitude / Time   ? feet / ? seconds
Notes   Good flight with a slow takeoff and good landing,
2
Rocket   Axion
Pressure   120psi
Nozzle   9mm
Water   1800mL + foam
Flight Computer   ST II - 5 seconds
Payload   HD cam #16
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing,
3
Rocket   Fireflight
Motor   B6-4
Payload   None
Altitude / Time   ? / ? seconds
Notes   Good launch, and good recovery.
4
Rocket   Axion
Pressure   120psi
Nozzle   9mm
Water   1800mL + foam
Flight Computer   ST II - 5 seconds
Payload   HD cam #16
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing,
5
Rocket   Black Thunder
Motor   C6-3
Payload   None
Altitude / Time   ? / ? seconds
Notes   Good launch, and good recovery.
6
Rocket   Axion
Pressure   120psi
Nozzle   9mm
Water   1800mL + foam
Flight Computer   ST II - 5 seconds
Payload   HD cam #16
Altitude / Time   ? feet / ? seconds
Notes   Good flight and good landing,
